Gate Valves

A gate valve, also known as a sluice valve, is a valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid. Gate valves are characterised as having either a rising or a non-rising stem. Rising stems provide a visual indication of valve position. Non-rising stems are used where vertical space is limited or underground.

Advantage

1. small fluid resistance, sealing surface by the medium of the scouring and erosion is small;

2. Open and close with less effort;

3. Medium flow direction is not restricted, do not disturb the flow, do not reduce the pressure;

4. Simple shape, short structure length, good manufacturing process, wide range of applications;

Characteristic

1. the medium channel inside the valve body is straight through, the medium into a straight line flow, flow resistance is small;

2. Large height, long opening and closing time. The opening and closing stroke of the gate is large, and the lifting is carried out by the screw;

3. Simple shape, short structure length, good manufacturing process, wide range of applications;

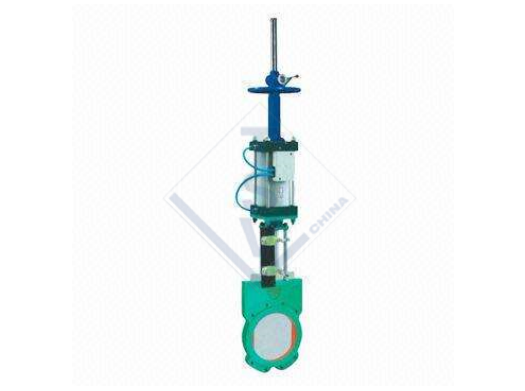

/Pneumatic Operated Stainless Steel Knife gate valve with Limit Switch, Filter and Solenoid Valve Pneumatic Operated Stainless Steel Knife gate valve with Limit Switch, Filter and Solenoid Valve

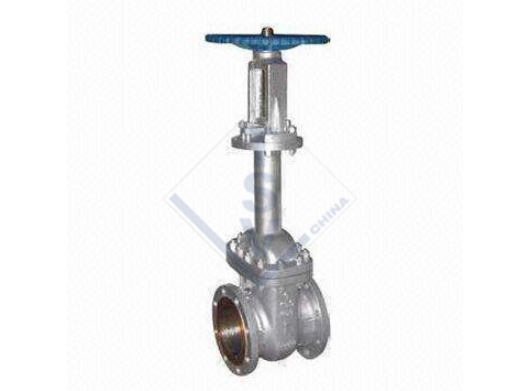

/Carbon Steel Gate Valve OS&Y 150#/300#/600# Flanged/BW Carbon Steel Gate Valve OS&Y 150#/300#/600# Flanged/BW

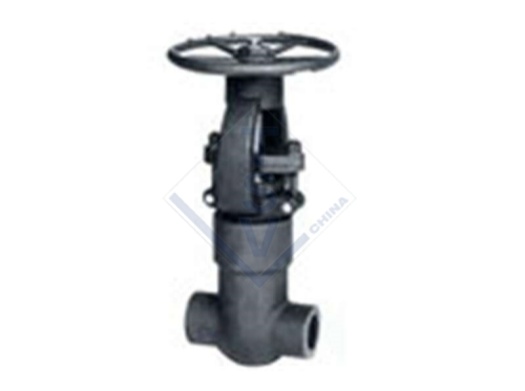

/ Forged Steel Gate Valve
/Cast Steel Gate Valve Cast Steel Gate Valve

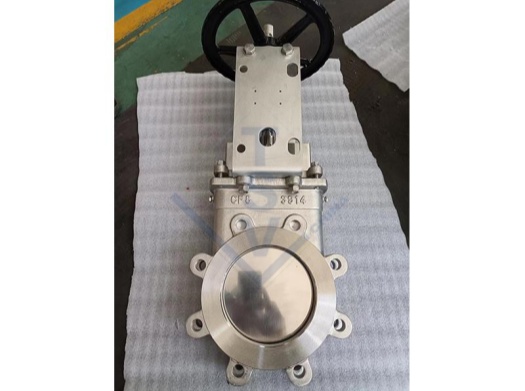

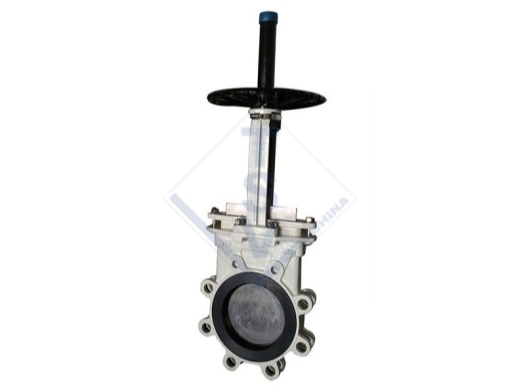

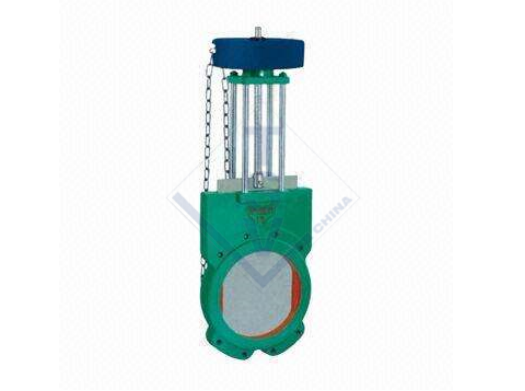

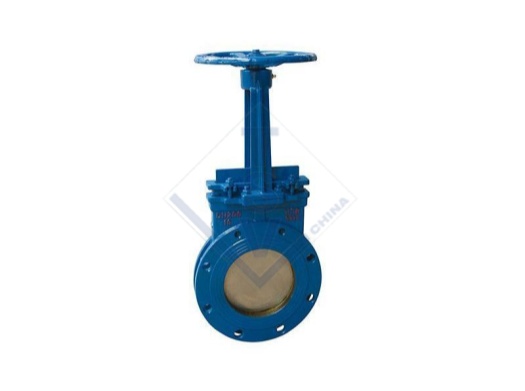

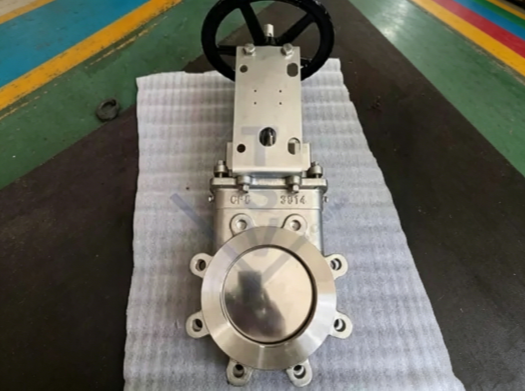

/ Knife Gate Valve

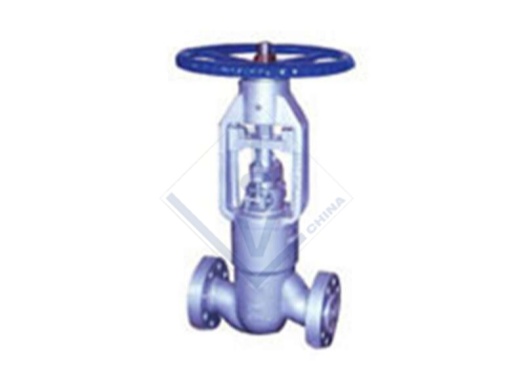

/Self Sealing Gate Valve Self Sealing Gate Valve
/Manual Casting gate valve Manual Casting gate valve
Why Choose Us
TSV products range from medium to high performances products, with particular emphasize on raw materials and design to adapt to customers're quirements. Most of the products can be tailor made to reach specific constraints. Additional services (actuating, installation, maintenance) can be provided as well.
Expertise
All API Compliant Valves Specific and tailor-made valves Piping Skids for fluid distribution Onsite support and inspection
Quality
Our Engineers design our products to meet the highest quality standards and certifications (ISO, API, ASME, ANSI, BS, NF….)
EXCELLENCE
A team of engineers at your service and attentive to your projects. Always striving for excellence, we guarantee quality materials and use cutting-edge machining processes.
RELIABLE
Our purpose is to provide a wide range of fully tailor made services to our customers. To achieve that, we have tied strong partnerships with trusted manufacturers
The Main Production facilities we have following
5 Ordinary lathe
Mainly used for turning basic parts such as inner holes and outer circles. The ordinary lathe has a simple structure, easy operation, and can meet basic turning requirements, but the accuracy is relatively low.
5 gantry milling machines
It is mainly used for milling various flat, curved, and gear parts. Longmen milling machine can meet the processing requirements of large and complex parts in valve production, but it has high power and energy consumption.
10 CNC machining centers
It has the advantages of high precision, high speed, and high efficiency, and can complete complex and fine part processing.
4 drilling machines
Drilling machines can be used to produce holes in various valve components, including various grooves, threads, straight holes, oblique holes, etc.
4 drilling and milling machines
Drilling and milling machine is an integrated processing equipment that has both drilling and milling functions. The machining range of drilling and milling machines is wide, and they can be used to machine various holes, grooves, convex and concave surfaces, etc.
10 CNC lathes
It can be used to produce inner and outer circular surfaces, conical surfaces, threads, etc. in various rotatable parts. CNC lathes have the advantages of high automation and high production efficiency.
Our production capacity

The company plans to purchase advanced production equipment such as CNC lathes, establish a fully intelligent high and low temperature butterfly valve production line, and introduce high and low temperature products

Upgrade the manufacturing level of laboratory testing equipment systems, high-precision measuring instruments, etc., thereby improving product quality and ensuring To ensure the stability of product quality and fundamentally promote the rapid development of enterprises.

Our products now have over 100 series and 2000 specifications, with an annual production capacity increasing from 150 tons to 60000 tons

p-l-10.jpg p-l-11.jpg p-l-12.jpg p-l-13.jpg
After-Sale Service
Every single customer of TSV is incredibly valuable

Provide product qualification certificates, labels, quality assurance certificates, installation instructions, delivery lists, etc. in a timely and effective manner according to the contract requirements, and provide a 12-month product warranty period service and lifelong free consulting services.

The product installation and debugging company can arrange professional technical personnel to provide telephone guidance for installation. Ensure the preservation and filing of data information every time, and strictly maintain the confidentiality of user information.

VIEW MORE
Our quality certifications
OUR ENGINEERS DESIGN OUR PRODUCTS TO MEET THE HIGHEST QUALITY STANDARDS AND CERTIFICATIONS (ISO, API, ASME, ANSI, BS, NF….)
FAQ About Gate Valves>
Can your gate valves meet the high pressure requirements？
>
A: Sure! For high pressure environments, we have self-sealing gate valves to meet the requirements.
What tests do you perform on gate valves?
>
A: We usually have pressure test, dimension test as well as the material test. For the pressure test, we will perform water/air pressure test. If the clients need, we can provide the video.
How do you operate your gate valves.
>
A: We have manual (Lever, handwheel), motor device as well as the pneumatic device~
