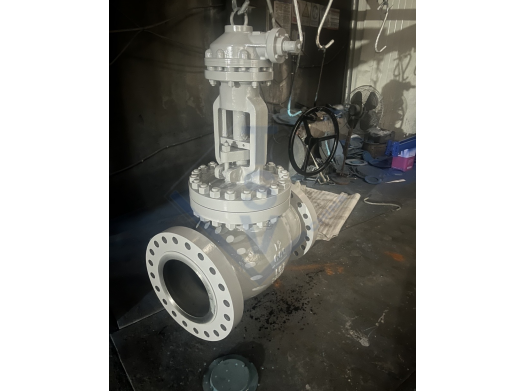

Gear Box Operated Casting Globe Valve

Key Features:

1. Material: Made from cast materials such as cast steel (e.g., ASTM A216 WCB, WCC), providing excellent mechanical properties and resistance to high temperatures and pressures.

2. Globe Valve Design: Features a globe-shaped body with a movable disk and stationary ring seat. The disk moves perpendicular to the flow path to regulate or stop the flow.

3. Gearbox Operator: The gearbox mechanism reduces the operating torque, making it easier to open or close the valve, especially in high-pressure or large-diameter applications. It is ideal for valves that are difficult to operate manually.

4. End Connections: Available in various end connections, such as flanged, threaded, or welded, to suit different piping systems.

5. Pressure Rating: Designed for high-pressure applications, with pressure ratings defined by standards like ANSI, ASME, or API.

6. Temperature Range: Suitable for a wide range of temperatures, depending on the material grade and seat design.

7. Sealing: Typically uses soft seats (e.g., PTFE, graphite) or metal-to-metal seating for tight shut-off and durability.

8. Flow Control: Provides precise flow regulation, making it ideal for throttling applications.

9. Robust Construction: Casting techniques ensure a strong and durable valve body, capable of withstanding demanding operating conditions.

Advantages:

1. Ease of Operation: The gearbox mechanism significantly reduces the effort required to operate the valve, making it suitable for large or high-pressure systems.

2. Durability: Cast construction ensures high strength and resistance to wear and tear, even in harsh environments.

3. Precise Flow Control: Excellent for throttling and regulating flow in high-pressure systems.

4. Versatility: Available in various sizes, pressure ratings, and end connections to suit different applications.

5. Reliable Sealing: Ensures tight shut-off and minimal leakage, even under high pressure.

6. High-Temperature and High-Pressure Capability: Suitable for extreme operating conditions.

Considerations:

1. Pressure Drop: Globe valves typically cause a higher pressure drop compared to other valve types (e.g., ball valves).

2. Flow Direction: Must be installed with the correct flow direction (usually indicated by an arrow on the valve body).

3. Cost: Gearbox-operated valves are generally more expensive than manually operated valves due to the additional mechanism.

4. Weight: Cast valves are heavier than valves made from other materials, which may affect installation and handling.

5. Maintenance: The gearbox mechanism may require periodic maintenance to ensure smooth operation.
