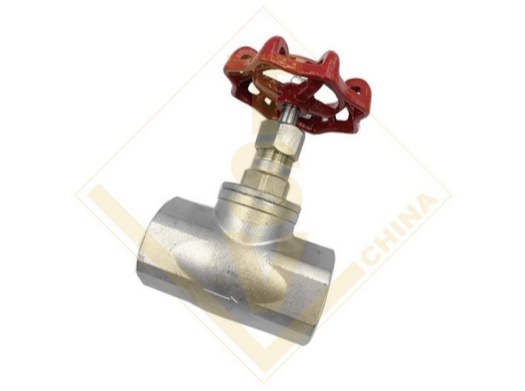

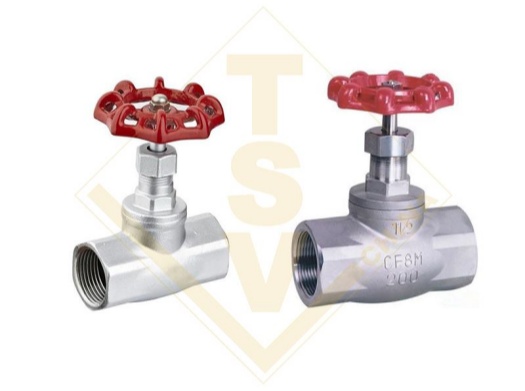

Small Size NPT Thread End CF8M Globe Valve

Product Details:

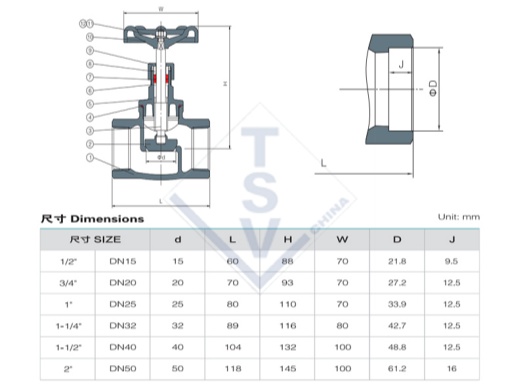

Size： DN15~DN100(1/2"~4")
Pressure: 200WOG (PN16)

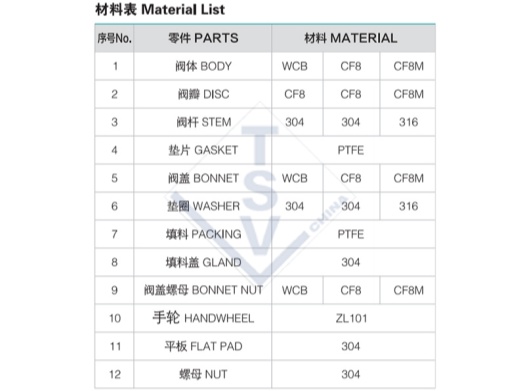

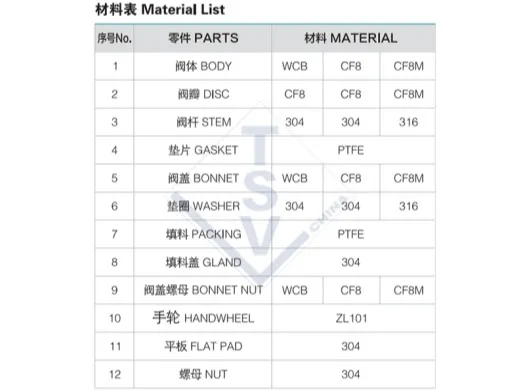

Material: WCB/CF8/CF8M/CF3/CF3M
Connection: NPT/BSPT

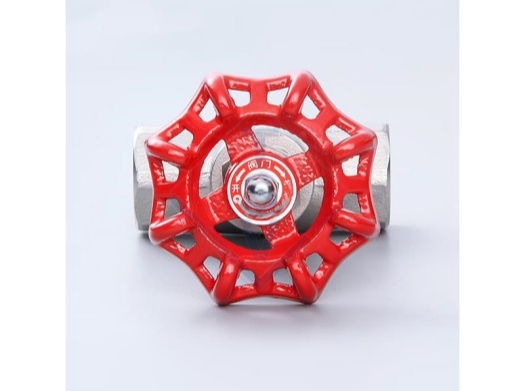

Operation: Handwheel

Key Features:

1. Material: Made from CF8M stainless steel, providing exceptional corrosion resistance, especially in acidic, alkaline, or chloride-rich environments.

2. Globe Valve Design: Features a globe-shaped body with a movable disk and stationary ring seat. The disk moves perpendicular to the flow path to regulate or stop the flow.

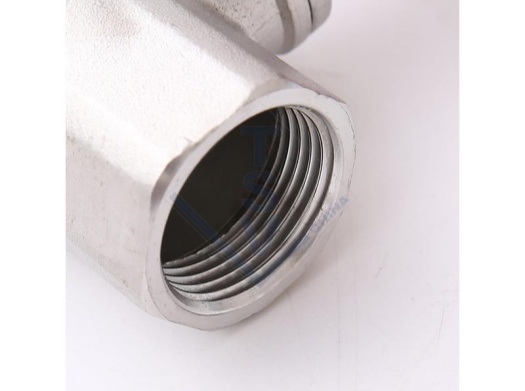

3. NPT Threaded Ends: Equipped with NPT (National Pipe Thread) threaded connections, ensuring a secure and leak-proof fit in small-diameter piping systems.

4. Compact Size: Designed for small-scale applications, making it ideal for systems with limited space.

5. Pressure Rating: Suitable for moderate to high-pressure applications, with pressure ratings defined by standards like ANSI or ASME.

6. Temperature Range: Capable of operating in a wide temperature range, depending on the seat material and application.

7. Sealing: Typically uses soft seats (e.g., PTFE) or metal-to-metal seating for tight shut-off and durability.

8. Flow Control: Provides precise flow regulation, making it ideal for throttling applications in small systems.

Advantages:

1. Corrosion Resistance: CF8M stainless steel offers excellent resistance to corrosion, making it suitable for harsh or corrosive environments.

2. Compact Design: Ideal for small-scale systems with limited space.

3. Easy Installation: NPT threaded ends allow for quick and secure installation in small-diameter piping systems.

4. Precise Flow Control: Excellent for throttling and regulating flow in small systems.

5. Durability: CF8M material ensures long service life, even in demanding conditions.

6. Leak-Proof: Threaded connections provide a secure and leak-proof seal.
