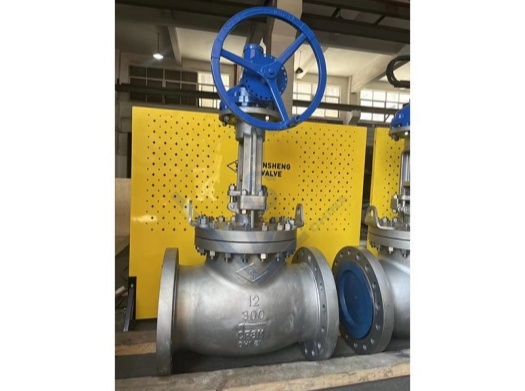

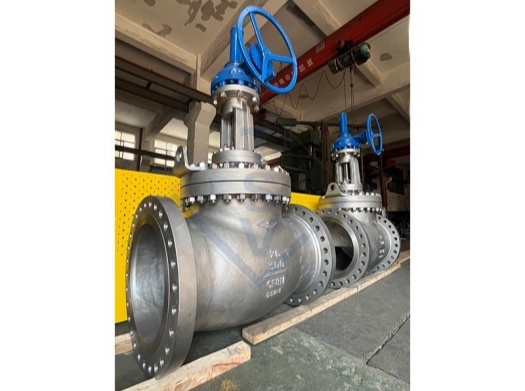

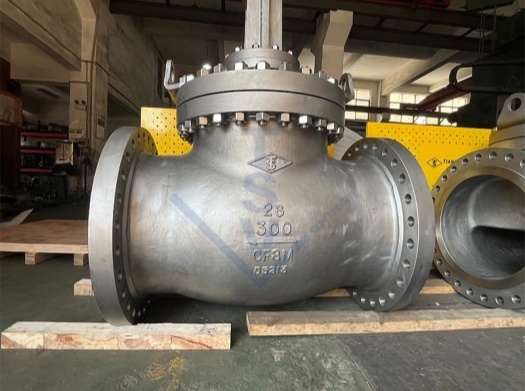

The Stainless Steel Flanged Globe Valve is a high-quality valve designed for regulating or isolating fluid flow in pipelines, particularly in applications requiring corrosion resistance, hygiene, and durability. Constructed from stainless steel, this valve offers excellent resistance to corrosion, high temperatures, and aggressive media. Its flanged ends ensure easy installation and secure connection to piping systems, making it a reliable choice for a wide range of industrial and sanitary applications.
Request a QuoteProduct Details
Key Specifications/Special Features:
Certifications: ISO 9001, API 6D and CE
Size: DN50 to 400
Pressure: 150 to 600lbs
Materials: WCB, LCB, LCC, WC1, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M and CF8C
Standards:
Design and manufacture: BS 1873
Face to face: ASME B16.10
Cast steel globe valve end connection: ASME B 16.10
Test: API600 and BS 1873
Structure type: straight
Operated way: hand wheel, bevel gear, pneumatic and electric
Key Features:
-
Stainless Steel Construction:
-
The valve body and key components are made from high-grade stainless steel (e.g., 304, 316, or 316L), providing exceptional corrosion resistance, durability, and suitability for hygienic applications.
-
-
Flanged Ends:
-
The valve features flanged ends that comply with international standards (e.g., ANSI, DIN, JIS), ensuring easy installation and a secure connection to pipelines.
-
-
Globe Valve Design:
-
The globe valve design features a linear motion stem and disc, allowing for precise flow regulation and tight shut-off. It is ideal for applications requiring throttling or frequent operation.
-
-
Corrosion Resistance:
-
Stainless steel construction makes the valve highly resistant to corrosion, making it suitable for handling aggressive media such as acids, alkalis, and saltwater.
-
-
Hygienic and Cleanability:
-
The smooth surface finish and corrosion-resistant properties of stainless steel make the valve ideal for applications in the food, beverage, pharmaceutical, and biotechnology industries, where hygiene is critical.
-
-
High-Temperature Capability:
-
The valve can withstand high-temperature environments, making it suitable for steam, hot water, and other high-temperature fluids.
-
-
Manual or Automated Operation:
-
The valve can be operated manually using a handwheel or lever, or it can be automated with the addition of an actuator for remote control.
-
-
Wide Range of Sizes and Pressure Ratings:
-
Available in various sizes (e.g., DN15 to DN600) and pressure classes (e.g., PN10 to PN100, Class 150 to Class 2500), the valve can be tailored to meet specific system requirements.
-
