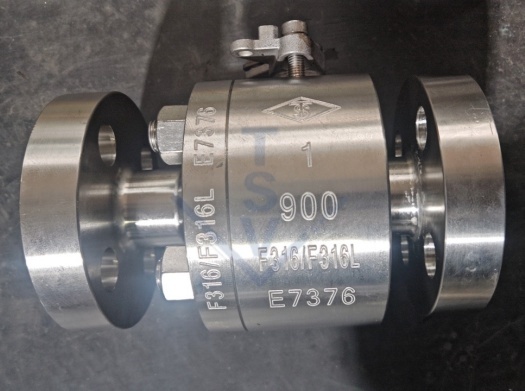

Full Bore Floating Ball Valve

Usually, TSV chooses Floating Ball Valve for 900LB, less than 3" to help lowering the cost.

Body Design Condition : CLASS900
Max. Allowable Pressure : 40 Bar g @ 120 °C
Max. Allowable Temperature : 260 °C @ 0 Bar g

Body : ASTM A182 F316/A182 F316L
Stem Seals :PTFE
Ball : 316
Stem: 314
Seat : PTFE/RPTFE/PEEK

The seat of the full bore ball valve is usually of elastic or metal seal construction, which closely fits the ball to ensure good sealing in the closed state. At the same time, in order to meet the requirements of the full bore, the inlet and outlet channels of the valve are also consistent with the ball through the hole and the inner diameter of the pipeline to ensure the smooth flow of the fluid.
