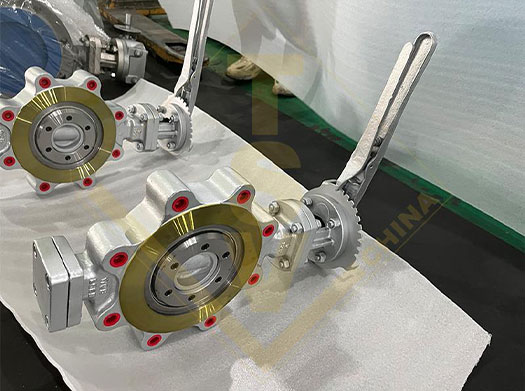

Lug Butterfly Valve

The drive mode of Lug butterfly valve can choose manual, worm gear, pneumatic, electric, connection can choose flange, clamp. And the structure can choose single eccentric, centerline type, double eccentric, three eccentric. Also the sealing structure can choose soft seal, hard seal. Besides, the pressure range PN0.1-10Mpa, nominal diameter is DN40 ~ 2000mm, material can choose cast steel, stainless steel.

The Lug butterfly valve is connected by flange, suitable for medium and large pipe system, stable performance, high pressure and strong corrosion resistance. Whereas the butterfly valve adopts double clamping structure, good sealing, easy installation, suitable for small pipeline system. This is the difference between the Lug type and Wafer type.

Key Features:

1. Lug Design: The valve has threaded lugs that align with the pipeline flanges, enabling it to be bolted into place without needing additional hardware.

2. Compact and Light weight: Its simple design makes it easy to install and maintain.

3. Bidirectional Flow Control: It can effectively regulate flow in both directions.

4. Materials: Typically made from materials like cast iron, stainless steel, or other alloys, ensuring durability and corrosion resistance.

5. Applications: Commonly used in water treatment, HVAC systems, chemical processing, and other industries requiring reliable flow control.

Advantages:

• Easy installation and removal.

• Cost-effective compared to other valve types.

• Suitable for a wide range of pressures and temperatures.

This valve is ideal for systems requiring frequent maintenance or where space and weight are concerns.
