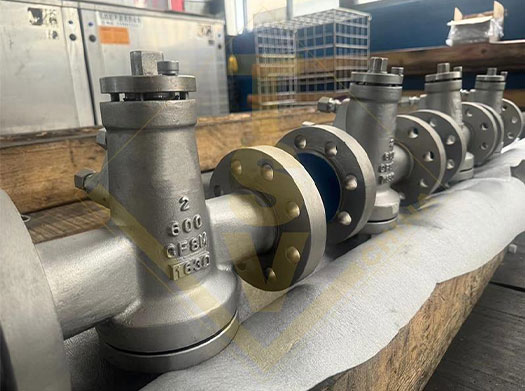

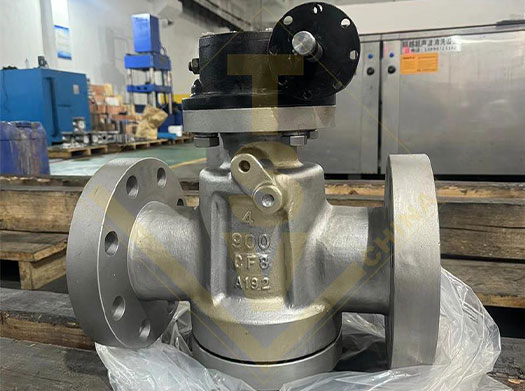

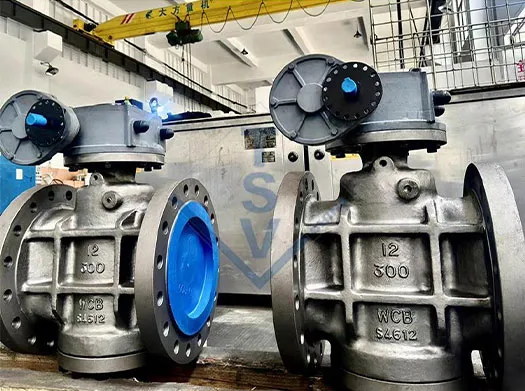

A Carbon Steel Plug Valve is a type of quarter-turn valve used to control the flow of fluids in a piping system. It features a cylindrical or conical plug with a through-hole that can be rotated to align with the flow path (open position) or perpendicular to it (closed position). Constructed from carbon steel, this valve is known for its strength, durability, and suitability for high-pressure and high-temperature applications. Carbon steel plug valves are widely used in industries such as oil and gas, chemical processing, and power generation.
Key Features:
-
Carbon Steel Construction:
-
Made from carbon steel, which provides excellent strength, durability, and resistance to high pressure and temperature.
-
Suitable for handling oil, gas, water, and other non-corrosive fluids.
-
-
Quarter-Turn Operation:
-
Operates with a 90-degree turn, allowing for quick and easy opening or closing.
-
Ideal for applications requiring fast flow control.
-
-
Plug Design:
-
Features a cylindrical or conical plug with a through-hole that aligns with the flow path in the open position.
-
The plug can be lubricated or non-lubricated, depending on the design and application.
-
-
Sealing Mechanism:
-
Provides a tight seal when closed, preventing leakage.
-
Sealing surfaces are often made from durable materials such as PTFE or elastomers for enhanced performance.
-
-
Applications:
-
Commonly used in oil and gas pipelines, chemical processing, water treatment, and power generation.
-
Suitable for both on/off and throttling applications.
-
-
Advantages:
-
Provides reliable flow control with minimal pressure drop.
-
Durable and long-lasting in high-pressure and high-temperature environments.
-
Easy to operate and maintain.
-
Available in various sizes and pressure ratings.
-
Applications:
Plug valves are commonly used in industries requiring reliable flow control, such as:
-
Oil & Gas: For pipelines, refineries, and offshore platforms.
-
Chemical Processing: Handling corrosive and abrasive media.
-
Water Treatment: Managing sludge and wastewater.
-
Power Generation: In steam and cooling systems.
-
Mining: Suitable for slurry and high-solid-content fluids.
Advantages:
-
High Flow Capacity: The straight-through port design minimizes pressure drop.
-
Low Maintenance: Simple construction reduces the need for frequent servicing.
-
Bidirectional Flow: Can handle flow in both directions effectively.
-
Fire-Safe Options: Compliant with API 607/API 6FA standards for fire-safe applications.
-
Customizable Configurations: Available in 2-way, 3-way, or multi-port designs to meet specific needs.
