A Pressure Seal Bonnet Gate Valve is a type of valve designed for high-pressure and high-temperature applications, commonly used in power generation, oil and gas, and petrochemical industries.
Request a QuoteProduct Details
Specification:
Describes the design and product range:
Design basis: ASME B16.34, GB12234, API600
Flanged ends: ASME B16.5, GB9113
Butt-welding ends: ASME B16.25
Face-to-face dimension: ASME B16.10, GB12221
Inspection and test: API598, API6D, JB/T9092
Pressure rating: Class150～2500, PN16～PN420
Product range: 1/2″～16″, DN15～DN400
Materials of main parts: WCB, LCB, WC6, WC9, C5, C

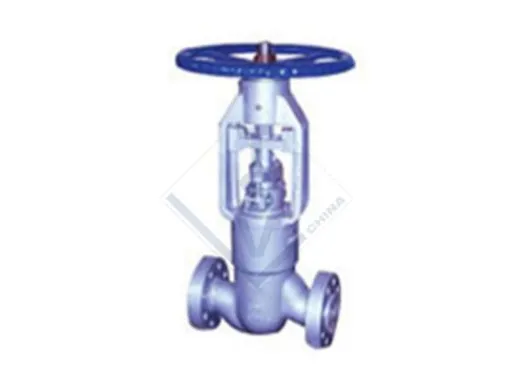

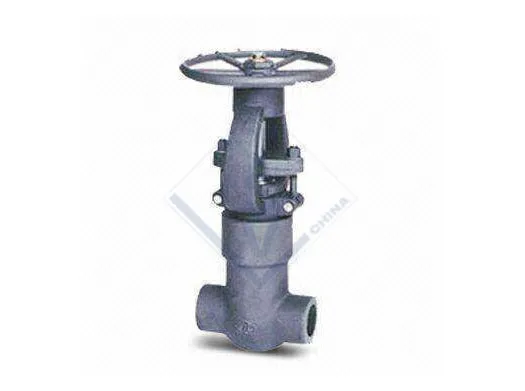

Pressure Seal Bonnet Gate Valve：
The gate valve can only be fully opened and fully closed to be used for cutting in the pipeline. It has such features as unlimited installation direction, small disturbed current, low pressure drop, shorter face-to-face dimension, good sealing performance and wide application range. The most important feature of the steel gate valve of TSV Group is that it can be ensured that the permissible leakage rate can be lower than that specified in API6D and API600, and the middle shaft sealing can pass the USA VOC leakage test. TSV Group can provide trims of various materials including materials specified by API600. We can also provide valves of various casting materials, such as carbon steel, stainless steel, alloy, Hastelloy, nickel chrome and etc.
Design features:
Certified to API600
USA VOC middle shaft micro leakage certification
Design of outside screw and yoke
Bolted bonnet
Pressure self-sealing type bonnet
Design of wedge type flexible gate and full guide rail
Operation methods: handwheel, bevel gear or electric operation
Overlay welding by hard alloy can be performed on the seat surface according to specifications in API600
Replaceable valve seat and back seat
Integral seat and back seat are adopted in stainless steel valves
