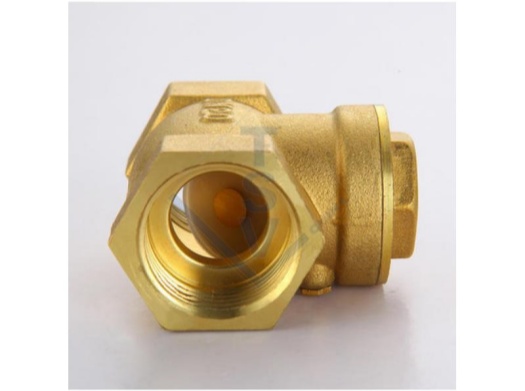

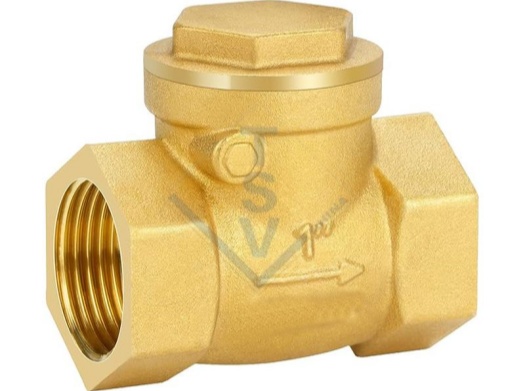

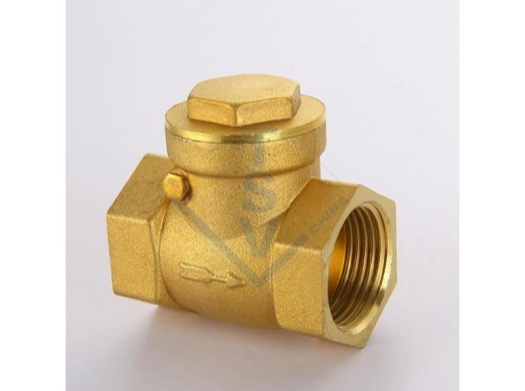

A Brass Thread End NPT/BSPT Swing Check Valve is a type of check valve designed to allow fluid flow in one direction while preventing reverse flow (backflow) in a piping system. It is constructed from brass, a durable and corrosion-resistant material, and features threaded ends that comply with NPT (National Pipe Thread) or BSPT (British Standard Pipe Taper) standards. The valve utilizes a swing mechanism, where a hinged disc swings open to allow forward flow and closes to block reverse flow. This type of valve is commonly used in applications requiring reliable performance, compact design, and easy installation.
Request a QuoteProduct Details
Product Details:

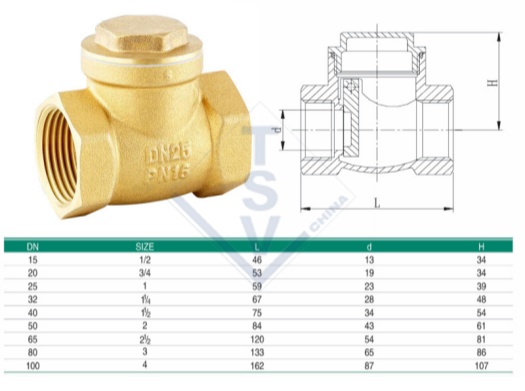

Size: 1/2"~4"(DN15~DN100)
Working Pressure: PN16
Working Temperture: -20~100℃
Material: Brass
Working Medium: Water/Oil
Thread: NPT, BSPT
Key Features:
-
Brass Construction:
-
Made from brass, which provides excellent corrosion resistance, durability, and suitability for water, air, and non-aggressive fluids.
-
Ideal for residential, commercial, and light industrial applications.
-
-
Threaded Ends:
-
Features NPT or BSPT threaded ends for easy installation in threaded piping systems.
-
Eliminates the need for flanges or welding, making it a cost-effective and space-saving solution.
-
-
Swing Mechanism:
-
Utilizes a hinged disc that swings open with forward flow and closes with reverse flow.
-
The disc is designed to provide a tight seal when closed, preventing backflow.
-
-
Operation:
-
Works based on pressure differentials: the valve opens when upstream pressure exceeds downstream pressure and closes when the flow reverses.
-
No external actuation is required; the valve operates automatically.
-
-
Applications:
-
Commonly used in water supply systems, HVAC systems, compressed air systems, and irrigation systems.
-
Suitable for both horizontal and vertical (upward flow) installations.
-
-
Advantages:
-
Provides reliable backflow prevention with minimal maintenance.
-
Easy to install and maintain due to threaded connections.
-
Compact and lightweight design.
-
Cost-effective solution for flow control.
-
