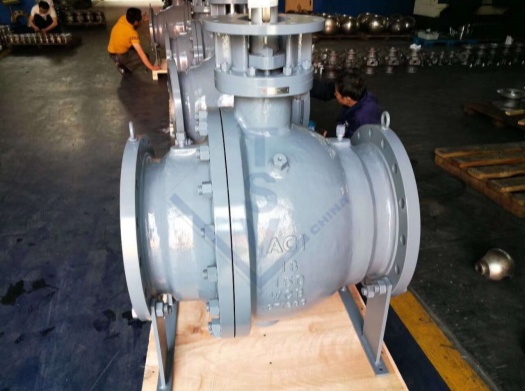

2PCS Flange Trunnion-mounted Ball Valve

Key Specifications:
2 or 3 pieces, fire safe, anti-static device
Product enforced standard:
Design and manufacture standards: API 608, API 6D and ASME B16.34
Face to face standards: API B16.10, API 6D and DIN 3202
End connection standards: ASME B16.5 and DIN2543-2550
Test standards: API 6D, BS 6755 and ISO 5208
Size: 1/2 to 10 inches
Pressure: 150 to 1500lbs
Materials: WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316 and F304L
Structure types: 2-/3-piece, reduced/full bore
Operated way: lever, handwheel and gear

Key Features:

1. Trunnion-mounted Ball Design: The ball is supported by trunnions (shafts) at the top and bottom, ensuring minimal friction and wear during operation. This design also reduces the operating torque, making the valve easier to operate, even in high-pressure conditions.

2. Two-Piece Body Construction (2PCS): The valve body is split into two pieces, which are bolted together. This design allows for easier maintenance and repair, as the valve can be disassembled without removing it from the pipeline.

3. Flanged Ends: The valve is equipped with flanged ends, which provide a secure and leak-proof connection to the pipeline. Flanged connections are ideal for high-pressure applications and allow for easy installation and removal.

4. Fire-safe Design: Many trunnion-mounted ball valves are designed to be fire-safe, meaning they can maintain their integrity and prevent leakage even in the event of a fire.

5. Bi-directional Sealing: The valve provides reliable sealing in both directions, ensuring tight shut-off and preventing leakage regardless of the flow direction.

6. Durable Materials: The valve is typically constructed from high-quality materials such as carbon steel, stainless steel, or alloy steel, depending on the application. The ball and seats are often made from materials like stainless steel or other alloys to ensure long-lasting performance in corrosive or high-temperature environments.

7. Versatile Applications: The 2PCS Flange Trunnion-mounted Ball Valve is suitable for a wide range of applications, including crude oil, natural gas, refined products, and other aggressive fluids.

Advantages:

• High Pressure and Temperature Capability: The trunnion-mounted design allows the valve to handle high pressures and temperatures, making it ideal for demanding applications.

• Low Operating Torque: The trunnion support reduces friction, resulting in lower operating torque and easier valve operation.

• Easy Maintenance: The two-piece body design allows for easy disassembly and maintenance without removing the valve from the pipeline.

• Reliable Sealing: The bi-directional sealing ensures leak-proof operation in both flow directions.
